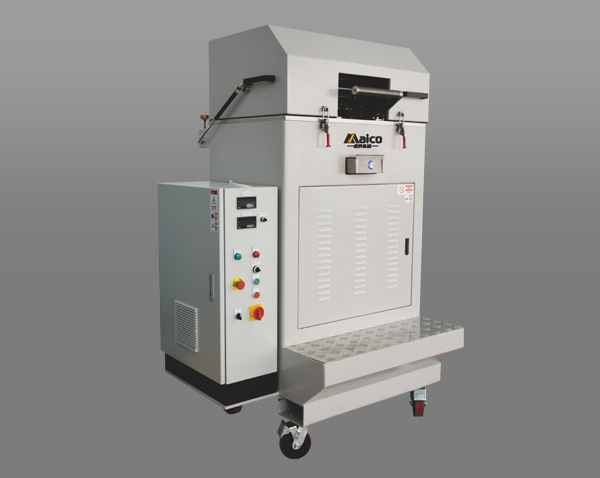

TSS dry strip granulator

Equipment advantages：

● The rotary knife circulates through the cooling water to reduce the thermal expansion of the knife body material and prevent the knife from hitting.
● The gap between the rotary knife and the fixed knife is adjusted to 0.02mm, and the end surface of the cut particles is smoother.
● Adopt dual motors and dual frequency conversion control, which can adjust the particle length.
● Using water-cooled knives imported from Japan,the hob sharply cuts out particles and the incision is flat.
● The fixed knife and scraper can shorten the distance from the upper and lower rollers to the cutting point and reduce the beating of the strip.
● PLC control and detailed production management are adopted.

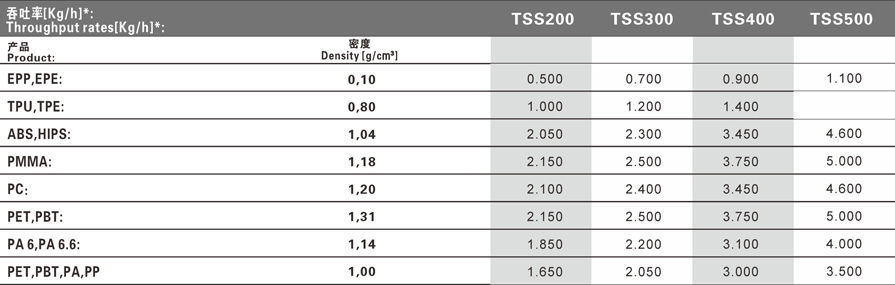

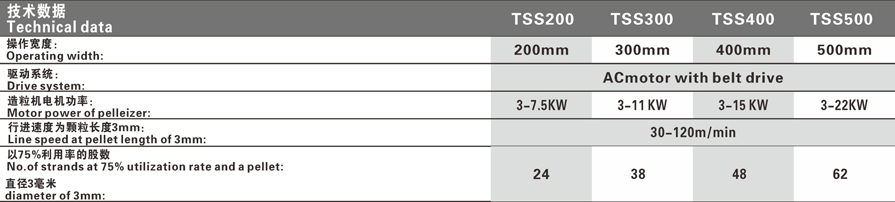

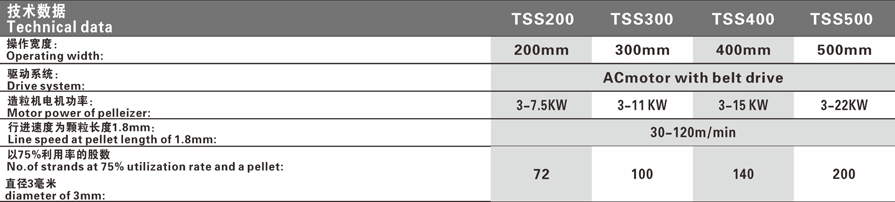

Technical data：

Maximum flexibility

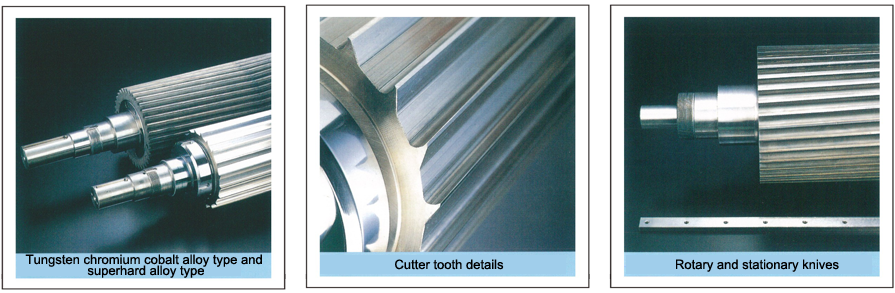

Different cutting tools can be used and dual motors and dual frequency conversion drives can be selected(Adjustable particle length)
